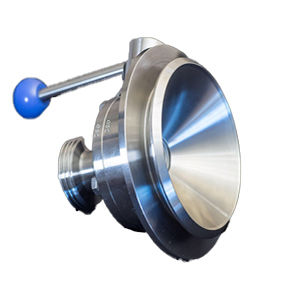

Tank bottom valve

ballmanualpneumatic

Requirements for the filling process are as far as possible residue-free emptying and no product residues in the closed valve. Thanks to the precise mount on the container outlet, the GULBINAT bottom drain valve fulfills all requirements to the highest degree. Dripping and germ formation due to product residues in the filling tank no longer exist. The use of the GULBINAT bottom drain valve significantly improves the profitability of production plants through a long circle time and smaller maintenance intervals. Details: - Individually customizable - Less maintenance - Compact Design - Stainless-steel model - No product contamination - No room for microorganisms - Individual connections - Automation - Piggable - Seal material: PTFE, HNBR,VITON,EPDM - FDA EG 1935/2004 - Models: DN 25-100 or inch size 1" - 4" - Further models on request Ball-Models: - C-Ball for highest hygienic demands - T-Ball for highest hygienic demands in combination with PTFE Seals - Fullball as a standard Actuator-Models: - Stainless-steel manuel -Scissors grip / (infinitely variable) - Pneumatic rotary actuator air/spring or air/air; 90° - material case: stainless-steel. - Pneumatic swing actuator air/spring or air/air; 90° - material case: Aluminium-alloy,anodized.
