Stepper motor controller BAC50 3A/48VDCprogrammablesingle-axis
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Motor type
- stepper
- Other characteristics
- programmable, single-axis
- Input/output
- digital input, digital output
- Output voltage
Max.: 48 V
Min.: 24 V
- Current
3 A
Description

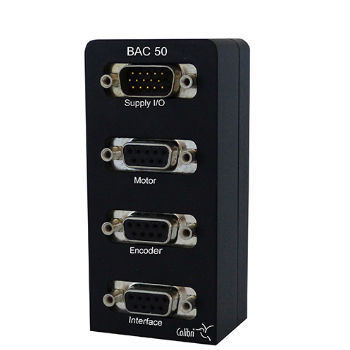

BAC50 3A/48V
Stepper motor controller with sequence program memory
Technical details:
Control: Digital I/O, clock/direction signal (RS422 or 24 V)
controllable axes: one
Control voltage: +24 V to +36 V DC
Motor voltage: +24 V to +48 V DC
Max. Phase current: adjustable up to 3 A
Temperature range: -10° C to +50°C without forced ventilation
Current reduction: adjustable
Inputs: 6 x +24 V DC
Outputs: 2 x +24 V DC
Step resolution: 1/8, 1/4, 1/2, 1/1
This control unit for the stepper motor is characterized by simple operation and fast commissioning.
The robust aluminum housing of the stepper motor controller up to 3A/48V protects the electronics from external influences and optimally dissipates heat to the environment. This allows you to use the stepper motor controller for long series production.
