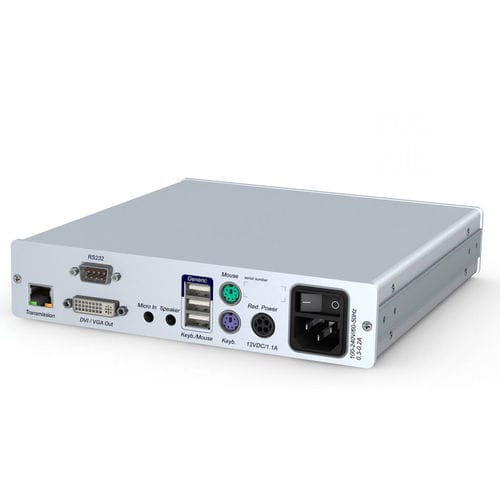

KVM extender DVI-Vision-IP

EthernetDVInetwork

The KVM-over-IP extender system DVI-Vision-IP extends the following signals: Keyboard/mouse (USB and PS/2) Audio + RS232 USB HID Generic The system processes single-link DVI image data pixel-perfectly and with very good hand-eye coordination. The maximum possible image resolution corresponds to a pixel rate between 25MPixel/s and 165MPixel/s. ignals are transmitted using CAT cabling or optical fibers as well as over IP-based networks on layer 3 – even across network boundaries. The DVI-Vision-IP system consists of a computer module (transmitter) and a console module (receiver) and allows users to operate their computers from great distances. By means of manual bandwidth management, the transmission can be adapted to a wide range of bandwidth requirements. Video, keyboard, mouse and control data is encrypted with AES-128. Operating principle Extenders of the DVI-Vision-IP series use G&D’s KVM-over-IP™ technology to transmit signals. The transmission is based on IP networks over gigabit Ethernet (OSI model, layer 3). The devices include with a network interface for transmitting data, WebIF, configuration, monitoring, SNMP and updates. They are also equipped with a management network interface that provides all of the above functions in addition to data transmission. For monitoring, DVI-Vision-IP uses G&D’s proven monitoring and SNMP technology. The system can be configured by via web interface or OSD. Due to predefined IP addresses, plug & play is supported for both console and computer modules. Therefore, it couldn’t be easier to use existing network infrastructures or CAT cables or optical fibres in a 1:1 connection to put the modules into operation.
