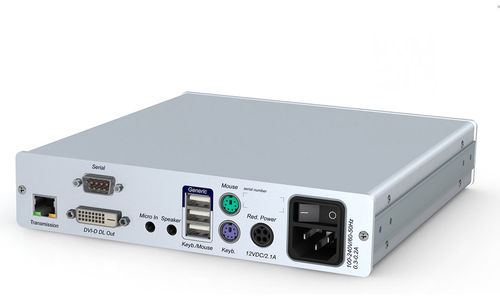

KVM extender DL-DVI Vision IP

industrialDVInetwork

The KVM-over-IP extender system DL-DVI-Vision-IP output the following signals: Dual-link DVI video Keyboard/mouse (USB and PS/2) Audio + RS232 USB HID Generic The system processes dual-link DVI image data pixel-perfectly and with very good hand-eye coordination. The maximum possible image resolution corresponds to a pixel rate between 25MPixel/s and 330MPixel/s. Signals are transmitted in compressed form using CAT cabling or optical fibers as well as over IP-based networks on layer 3 – even across network boundaries. DL-DVI-Vision-IP is a console module (receiver), which is compatible with computer modules (transmitters) of the Vision-IP series. Combining DL-DVI-Vision-IP with a Vision-IP computer module allows users to operate their computers over large distances. By means of manual bandwidth management, the transmission can be adapted to a wide range of bandwidth requirements. Video, keyboard, mouse and control data is encrypted with AES-128. Configuration and security Encrypted video, keyboard, mouse and control data (AES-128) Support of Quality of Service (QoS), can be configured by users Users can configure network ports of the respective communication channels Additional, independent management interface Manual bandwidth management to adjust the required bandwidth SNMP (trap and agent) Galvanic separation of transmitter and receiver (only with Fiber), less sensitive to interfering radiation High reliability
