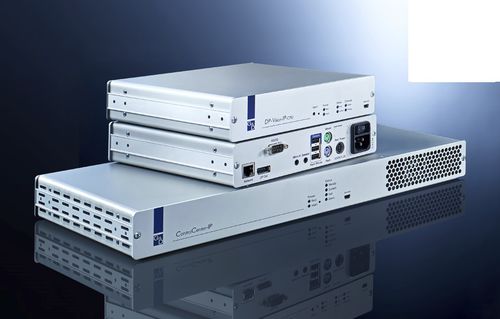

Video switch matrix ControlCenter-IP

digitalhigh-speed

The ControlCenter-IP allows, in addition to the existing point-to-point connection of IP extender systems, switching of all connected computer and console modules and extends the ease of use and flexibility. G&D has taken the features of the classic ControlCenter series and integrated them into the KVM-over-IP matrix. The resulting ControlCenter-IP combines the advantages of both worlds. This includes the basic administration with extensive user and rights management. Many helpful and popular control room features such as monitoring, scenario switching, push-get for optimal cooperation and incorporation of video walls to CrossDisplay-Switching for absolutely intuitive operation of multi-monitor workstations are also available. G&D's IP devices are compatible with each other and allow optimisations in the customer-side system and its extension at any time. The ControlCenter-IP enables the switching of the following signals DP 1.2 and DP 1.1a Single link and dual link DVI Audio stereo bidirectional Support of PS/2 and USB keyboard/mouse RS232 transparent Generic USB HID with a view to other USB classes With the U2-LAN-04 you also can integrate high-speed USB 2.0 into your KVM-over-IP matrix installation (see "Functions & Expansions" for more information).
