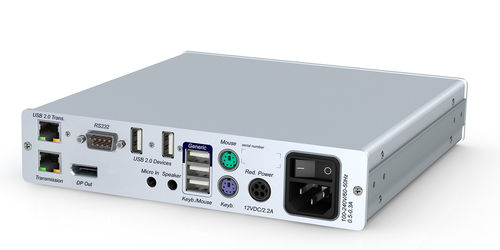

KVM extender DP-Vision

industrialnetworkUSB

The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console. DP-Vision uses CAT-x cables or fibre optics to transmit signals up to 10,000 m. The devices use DisplayPort video and are available as variants displaying 1, 2, 3 or 4 video channels. It is also possible to transmit transparent USB 2.0, RS232 and audio signals. With its network port, the web interface and monitoring functions, the DP-Vision system offers important features for mission-critical applications. With the Monitoring function, you can auto-output device status messages to Syslog servers or SNMP. The web interface lets you monitor the device manually. The Monitoring function of the DP-Vision queries the following values: Proactive monitoring of device states Event reporting function (Syslog or SNMP traps) Status power supply unit (on/off) Status temperature threshold device (in/over limit) Status connection cables (ok/nok) Status computer (on/off) Status image signal graphics card computer (available/not available) Status network Fan monitoring Status SFP modules (in -Fiber variants) Status interfaces (CPU and CON modules) Freeze status (all channels) Type of display (local and remote) Screen-Freeze Function If the console module loses the video signal due to a broken connection or a problem with the computer's graphics card, the Screen-Freeze function "freezes" the last displayed image of the monitor. This state is highlighted by a red semi-transparent frame. The function is automatically cancelled when the display receives an active video signal.
