Absolute rotary encoder A37

photoelectricsolid-shaftblind-shaft

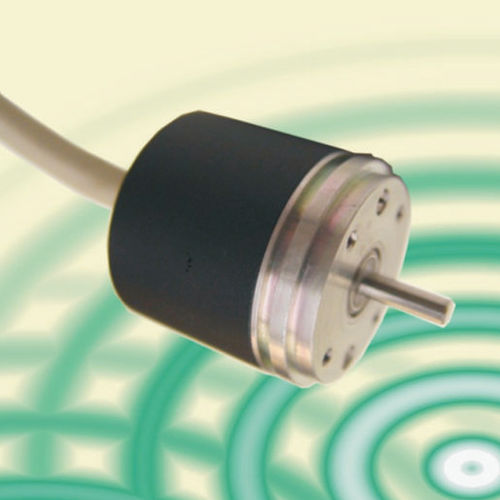

The A37 Series, manufactured by Gurley Precision Instrument, is a miniature single-turn absolute rotary encoder equipped with an opto/magnetic electronic technology. It has an aluminum housing diameter of 37 mm and stainless steel solid or blind hollow shaft diameter of 3 up to 5 mm. This encoder is designed to provide digital feedback information for any position-sensing applications. The modelA37 mini encoder is a single-turn absolute rotary encoder with opto-electronic technology. This encoder is used in a wide variety of position-sensing applications for the measuring of angles and distances in relatively small envelopes. Mechanical features include a 37-mm aluminum housing, a 3 - 5 mm (or 1/8” - 1/4”) dia stainless steel solid or blind hollow shaft, and precision ball bearings. Mechanical SpecificationsMoment of InertiaStarting TorqueRadial Shaft LoadAxial Shaft LoadBearing ArrangementBearingsCode Disk TypeNon-Operating SlewAccelerationShock 11 (ms)Vibration (0-2000Hz)SealingRecommended CouplingEnvironmental SpecificationsOperating TemperatureStorage TemperatureRelative HumidityElectrical SpecificationsSupply VoltageCurrent ConsumptionLED LifeOutput Code Output FormatOutput DeviceAccuracyStep Frequency LSBUnits22in-oz-s (g-cm)in-oz (Nm)lb (N)lb (N)RPM2rad/sggSCAF (C)F (C)%VDCmAhours°°°°Limiting Values-52.3 x 10 (1.7)0.14 (0.001)1 (5)1 (5)10,00063 x 105015IP6432 to 158 (0 to 70)0 to 160 (-18 to 71)984.75 to 5.25, 5.00 nominal 100100,000≤≥See Note2 pre-loaded bearingsGrease-lubricated and sealedetched chrome on glass
