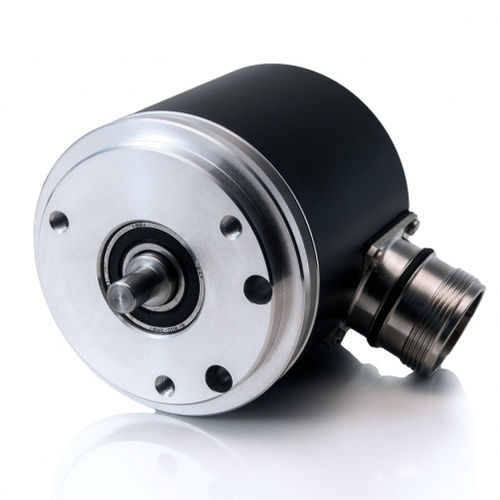

Absolute rotary encoder M58

opticalmagneticsingle-turn

Major Features and Advantages: •Up to 21-bit single-turn resolution available •Up to 58-bit (18-bits/turn + 40-bit turns) gearless multi-turn resolution available •Standard synchro flange •SSI Interface standard (RS-485) - 4 MHz clock frequency •Accuracy: +/- 30 arcsec The Model M58S with SSI output Is a heavy-duty absolute rotary encoder with optical technology and standard SSI (RS485) interface, used In a wide variety of position sensing applications for measuring angles and distances. It Is available as a single-turn encoder with up to 21 bits of resolution (2,097,152 steps per revolution), or as a standard multi-turn with a range of 18-bit words/turn + 40-bit turns. The optical technology and magnetic sensors (for counting turns) allow the encoder to be gearless. A back-up battery Is located inside the encoder and assures true absolute position even power Is disrupted. Operating temperature-10°Cto +70°C (14°F to 158°F)Storage temperature-30°C to + 80°C (-22°F to 176°F)Humidity98 % (non-condensing)Light sourceLEDMaximum cable length25mClock frequency62.5kHz to 4MHzData outputLine-driver according to RS 485Operating frequency4 MHzmaxAccuracy+/-30 arcsecSupplyvoltage+5 VDC ±0.25 VCurrent consumption50mAmaxOutput code formatGray code or Natural BinaryMoment of inertia =15gcm2 (2.1x 10-4in-oz-s2)RPMMax. 12,000 (mechanical)Shock=100g (11ms)Sealing protectionIP65(IP67 optional)Humidity, %rh, non-condensing98Vibration=10g (55Hz to 2,000 Hz)Max shaft loadingAxial10 N (2lb);Radial20N (4lb)Starting torque@ 20C=0.01Nm (1.4 in-oz)Maximum weight, oz (g)10.6(300)without cable
