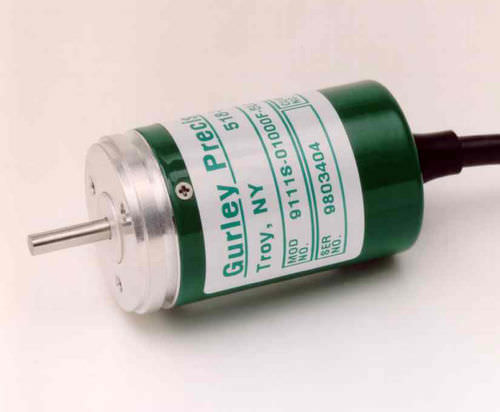

Incremental rotary encoder 9x11S series

opticalsolid-shaftRS-422

The 9x11S Series is a range of optical incremental encoders from Gurley. The series is specially designed for light industrial applications which need high resolution in a compact package. It generates a resolution that measures up to 1800 cycles/rev and features an LED illumination with a long life. It also has differential photo-detectors to provide proper signal stability. Furthermore, the series is sealed with ABEC 7 bearings that protects the device against contamination. It is also lubricated with grease to deliver a trouble-free service. Motion Type:RotaryUsage Grade:Output:Max Resolution:Light IndustrialIncremental7,200 counts/rev144,000 counts/revw/ext. electronicsGurley Series 9x11SRotary Incremental EncoderGPIGPIIIIIIIIIIIIIIIGurley Precision Instruments514 Fulton StreetTroy, NY 12180 Online at www.gurley.com, e-mail: info@gurley.comSmall Package - Big PerformanceThe Series 9x11S is a family of optical incremental encoders designed specifically for light industrial applications that require high resolution in a small package. These features make the 911S superior to competitive encoders:o!Resolutions up to 1800 cycles/rev (7,200 counts/rev, or 0.05/count) !Standard zero index signal !LED illumination for long life (>100,000 hours)!Differential photo-detectors for signal stability!RS-422 differential line driver output for noise immunity!Single-board, surface-mount electronics (9111S)!Sealed ABEC 7 bearings for contamination resistance !Grease lubrication for long trouble-free serviceTwo models available: suitable for most applications provides higher accuracy and with external customer electronics, generates up to 144,000 counts/rev
