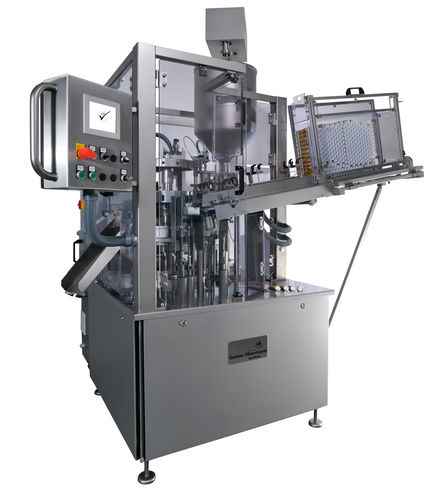

Tube filler and sealer TU60/80

fully-automaticgravimetricvertical

The TU60/80 is a fully automatic tube filling and closing machine driven by cam discs and/or servo motors. The machine is equipped with a rotary indexing table and a wide range of options are available. Due to the high quality electronics a high flexibility regarding the filling and closing process is given. Furthermore, up to 99 recipe programs can be created for the products to be processed.The rotary indexing table has 12 quickly exchangeable tube holders. A central hollow shaft carries the tool holder plate on which the closing tools are mounted. The machine frame as well as the parts in contact with the product are made of stainless steel.Tubenfüller TU80TU60/80 Tubenfüllmaschine SkizzeAs standard, a rapid loading magazine is used for feeding the tubes. Other tube feeding systems are also available on request. The machine includes a remote maintenance facility for quick and easy service. Plastic or laminate tubes are closed by hot air technology, ALU tubes are closed with folding tools. In addition, the tubes can be embossed on both sides.
