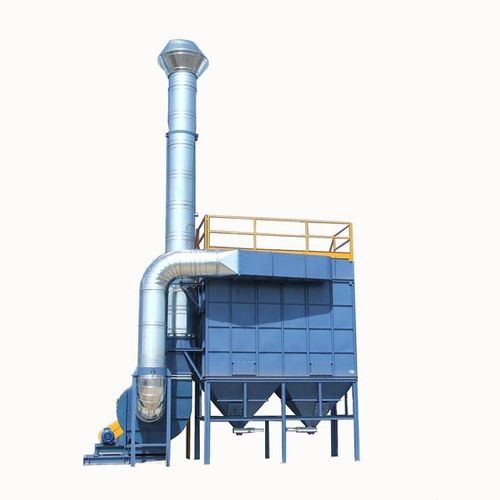

Bag filtration plant FM

for liquidsfor compressed airautomatic

GVF Impianti Srl suction and dust-suppression systems are adopted in our several sectors of operation and are studied and sized, in order to create clean working areas, to have emissions compliant with the norms and to keep low management and maintenance costs. We supply cartridge and sleeves filters, bag filters, panels filters, ring filters, drop stop filters, scrubbers, hydro filters, afterburners. Furthermore in all systems can be included also cyclonic pre-suppression systems and all the equipment for analysis, control, management and restoration, which are needed or requested. The bag filter FM type provides automatic cleaning through countercurrent compressed air blown into the bags. This air, due to the Venturi effect causes the shaking and the backwashing of the bags at the same time. The GVF Impianti’s bag filters are equipped with longitudinal pre-chamber for de-dusting, which guarantees the homogeneous distribution of powder over the entire filter’s length. The automatic cleaning is managed through an appropriate electrical control unit, which adjusts the compressed air, thanks to a timer or a differential pressure switch. • Suitable for dust suppression • Monolithic construction for high negative pressure values • PED compliant bin • Pulse Jet cleaning system with obstruction control • Capacity from 3.000 to 150.000 mc/h • High performance longitudinal pre-abatement chamber • High temperature version • Atex compliant version • Triboelectric probes to control emissions from chimney • Unloading screw conveyors
