MMA welder PROGYS 300 TRI
TIGelectrodethree-phase

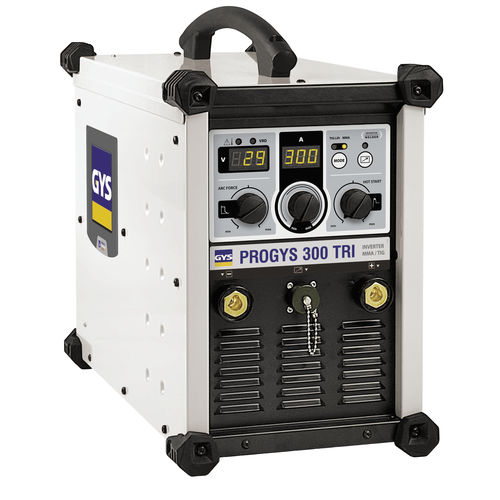

MMA welder - PROGYS 300 TRI  - GYS - TIG / electrode / three-phase
MMA welder - PROGYS 300 TRI  - GYS - TIG / electrode / three-phase
MMA welder - PROGYS 300 TRI  - GYS - TIG / electrode / three-phase - image - 2
Add to favorites
Compare this product


Characteristics

Technique
TIG, MMA
Consumables
electrode
Power supply
three-phase
Output current
DC
Material
for steel
Other characteristics
inverter, portable
Intensity

Max.: 300 A

Min.: 20 A

Weld thickness

Max.: 6 mm
(0.2 in)

Min.: 1 mm
(0 in)

Description

300 A COATED ELECTRODE (MMA) INVERTER WELDING UNIT The PROGYS 300 TRI is a three-phase MMA / TIG generator with exceptional welding performance. Designed around reinforced electronics, this unit offers manufacturers maximum productivity, even in the most hostile environments. Its VRD device, which can be activated internally, protects welders in areas at risk of explosion. MMA process - MMA welding current from 20 to 300 A - Duty cycle of 60% at 300 A (40°C) - Accepts Rutile, Basic, Stainless Steel, Cast Iron and Cellulosic electrodes (up to Ø 6 mm) - Integrated welding aids: adjustable Hot Start, adjustable Arc Force and Antisticking - Arc gouging with carbon electrode (up to Ø 5 mm) TIG DC process - TIG DC welding current from 20 to 300 A - Lift start - Current/voltage display during welding. - Optional RC-HA1 manual remote control (045675) - VRD (Voltage Reduction Device) can be activated to reduce the no-load output voltage to 20 V. - IP23 protection level for outdoor use - Three-phase power supply 400 V - 16 A → Supplied without accessories → Optional electrode holder and earth clamp
