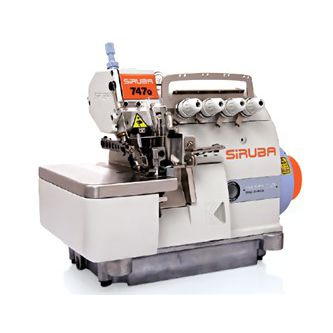

Overlock stitch sewing machine SIRUBA 700Q Series

twin-needlefabricfixed

SIRUBA 700Q Series Overlock Stitch S/M Feature ■ MECHATRONICS [Patent] The first and only design in the world, which completely integrates the electric portion (servo motor, control box, and power switch) into overlock machine. 7000 advanced version is compatible to optional automatic devices that bring complex design to simple formation. The new SIRUBA technology embedded the powerful servo motor into the main body. Due to the nice weight allocation, the machine is more balanced The power transmission is completely performed. The Siruba' s exclusively built-in synchronizer is now more evolved! The locator IC is integrated and sealed inside the motor which makes sensing more precisely and signal transmission with zero error. Such improvement omits the old way of signals connection, eliminates the possibility of transmission defects between interfaces. and implements system inteorative soirit of design throughout. [Patent] The embedded motor which joints the outstanding transmitting system, skillfully divides the power to drive the oil supply system. Modularized oil lubrication system simplifies the assembly and user maintenance works, therefore eliminates the possibility of man-made error. ■ NEEDLE BAR PORTION ACTIVE LUBRICATION SYSTEM The needle bar mechanism adopts the compulsory oil-supplying to ensure the high speed movement. The needle bar lower position equipped with the compulsory oil-returning to ensure the perfect oil control status. ■ UPPER LOOPER MECHANISM ACTIVE LUBRICATION SYSTEM Compulsory oil-returning is leaded by the suction of the main shaft rotation. To combine the upper looper's initial oil-returning system, it upgrades the lubrication system.
