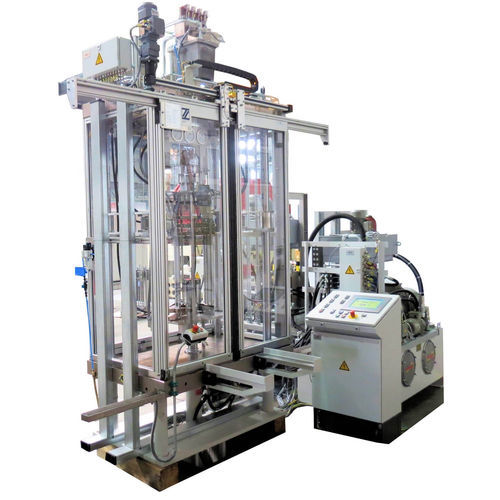

Hydroforming machine APMY 100

Hydroforming (Hydraulic extrusion) machines High-yield machines to produce metal bellows. Machine series “APMY“ Complete forming by hydraulic inner pressure (hydroforming) Sleeves/ bellows are manually removed and inserted Diameter-related die plates Corrugation of a complete metal bellows in one operation Production of single- and multi-layer bellows Up to 30 corrugations per bellows End contour by means of specially-shaped supporting die plates Combination of straight tube segments with corrugated segments Diameter range - 40 – 100 mm - 14 – 100 mm Wall thickness - 0,2 – 1,2 mm - 0,2 – 1,2 mm Inner pressure - 200 bar - to 500 bar Max. tube length - to 1000 mm - to 1000 mm
