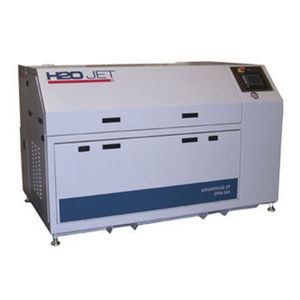

Water pump SMP series
electricstationaryindustrial

Water pump - SMP series - H2O JET Inc  - electric / stationary / industrial
Water pump - SMP series - H2O JET Inc  - electric / stationary / industrial
Add to favorites
Compare this product

Characteristics

Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Applications
high-pressure, recirculation, for cutting
Other characteristics
compact, high-performance, skid-mounted
Flow

0.91 l/min, 1.17 l/min, 2.27 l/min, 2.38 l/min, 3.8 l/min
(0.2404 us gal/min, 0.30908 us gal/min, 0.59967 us gal/min, 0.62873 us gal/min, 1.00385 us gal/min)

Pressure

4,150 bar, 6,481 bar
(60,190.661 psi, 93,998.958 psi)

Power

7.3 kW, 11 kW, 22 kW, 37 kW, 37.3 kW
(9.93 hp, 14.96 hp, 29.91 hp, 50.31 hp, 50.71 hp)

Length

111 cm, 119 cm, 131 cm
(44 in, 47 in, 52 in)

Width

64 cm, 86 cm, 109 cm
(25.2 in, 33.86 in, 42.91 in)

Height

83 cm, 104 cm, 118 cm
(32.68 in, 40.94 in, 46.46 in)

Weight

349 kg, 362 kg, 680 kg, 816 kg, 862 kg
(769.41 lb, 798.07 lb, 1,499.14 lb, 1,798.97 lb, 1,900.38 lb)

Description

Our line of Skid Mounted Pumps (SMP) provides you with all of the benefits of high-pressure water at a lower price-point in an ultra-compact space saving design. The SMP delivers the same basic outstanding performance as our standard Advantage pumps, without the framing option, making it a lower cost option. It utilizes the same standard intensifier with small size, enabling easy swap out for offline maintenance, avoiding interruptions to production schedules. High Pressure, Small Footprint Our Skid Mounted (SMP) Pumps are available in four options: 10, 15, 30 and 50 horsepower/7.3, 11, 22, and 37 kw. Each high-performance pump is designed with features and options to enhance operation and cutting effectiveness. • Ultra-compact space saving design, with ergonomic design and easy access to all maintenance parts • Optional efficient Air/Oil Cooling for a greener, lower energy way to cool hydraulic oil • Optional energy-efficient motor starter – Wye-delta, or soft start are available – for lower energy costs • Optional large, 2-Liter attenuator for our 50 HP version for improved cut edges, especially for cutting thick metal when running at maximum water output • Continuous recirculation pump for filtering and cooling of hydraulic oil, to protect oil life and performance
