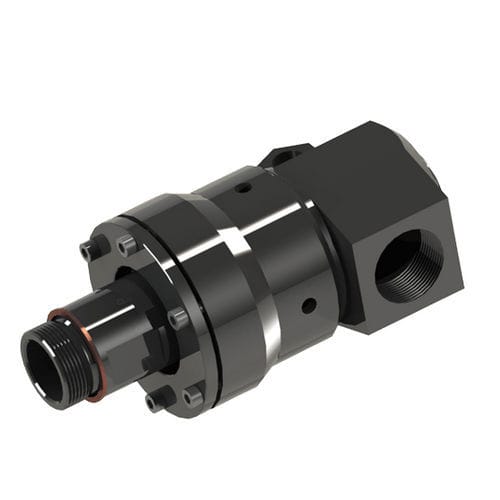

Water rotary union 9001 G-ND
for vacuumfor chemicalsfor steam

water rotary union
water rotary union
water rotary union
water rotary union
water rotary union
Add to favorites
Compare this product


Characteristics

Medium
for water, for hot oil, for air, for vacuum, for steam, for chemicals
Number of passages
2-passage
Material
stainless steel
Rotational speed

700 rpm
(4,398.23 rad.min-1)

Pressure

6 bar, 12 bar, 17 bar
(87 psi, 174 psi, 247 psi)

Nominal size

Max.: 1.5 in

Min.: 0.25 in

Description

Rotating joint type G-ND – new design with bellows system cartridge, graphite bushbearings, for universal use Product characteristics universal use – cooling, heating, clamping with bellows sealing cartridge fast change CD-cartridge-design sealingmaterial ceramics/graphite. For coking heat transfer oil with temperature higher than 230 °C – Version HT with diamondhard sealface and hightemperature graphitesealring graphite bushbearings – maintenance free no elastomers – therefore no temperature and chemical resistance problems no loose parts, f.e. springs robust and less influence of dirty media self supporting – no additional support necessary available in stainless steel

Catalogs

Serie 9001
Serie 9001
70 Pages
