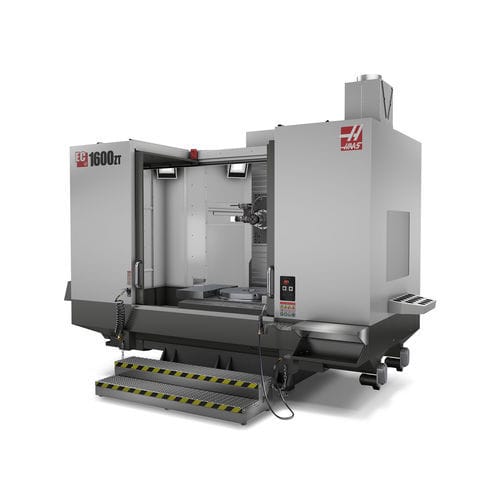

3-axis machining center EC-1600ZThorizontalBT 5050 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 50
- Number of tool stations
- 50 tools
- Other characteristics
- with automatic tool changer
- X travel
1,626 mm
(64.02 in)- Y travel
1,270 mm
(50 in)- Z travel
1,016 mm
(40 in)- Power
22.4 kW
(30.46 hp)- Work feed X-axis
15,200 mm/min
(10 in/s)- Work feed Y-axis
15,200 mm/min
(10 in/s)- Work feed Z-axis
15,200 mm/min
(10 in/s)- Table load capacity
4,536 kg
(10,000 lb)- Tool weight (max)
13.6 kg
(30 lb)- Tool-changing time
8 s
- Weight
15,876 kg
(35,000.59 lb)
Description
The highly popular Haas EC Series HMCs offer large work cubes and a maximum part capacity of 10,000 lb, making them perfect solutions for your large-part machining requirements. Models are available with a 4th-axis rotary platter integrated into the T-slot table to provide access to four sides of a part or tombstone, or simultaneous 4th-axis machining. The EC-1600ZT offers more Z-axis travel than the standard EC-1600.
Extended Z-axis travel
50-taper spindle with a 2-speed gearbox
Extra-large work envelope
78" max part swing with integrated 4th axis (optional)
Catalogs
No catalogs are available for this product.
See all of Haas Automation‘s catalogs
