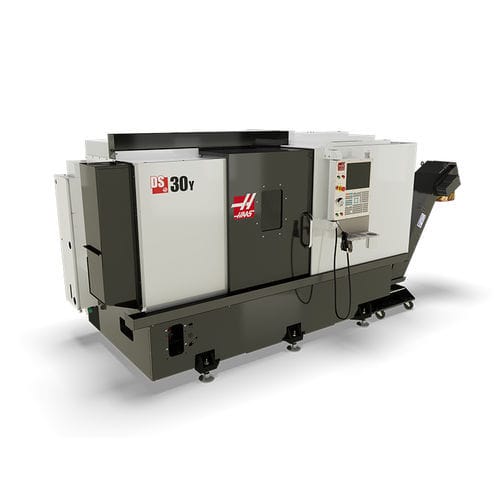

CNC turning center DS-30Y3-axisrigid2-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Structure
- rigid
- Number of spindles
- 2-spindle
- Spindle mount
- A2-6, A2-5
- Number of tool stations
- 12 tools
- Other characteristics
- Y-axis
- Associated function
- tapping, drilling
- Diameter
254 mm
(10 in)- Spindle speed
4,000 rpm, 4,500 rpm
(25,132.741 rad.min-1, 28,274.334 rad.min-1)- Axe X
239 mm
(9 in)- Axe Z
584 mm
(23 in)- Rapids on X
12 m/min
- Rapids on Z
24 m/min
- Nominal power
11.2 kW, 22.1 kW
(15.2 hp, 30 hp)- Maximum torque
373 Nm
(275 ft.lb)
Description
The DS-30Y Y-axis turning center combines dual-spindle turning with Y axis, C axis, and live tooling to create a powerful “done-in-one” machining solution for any shop. Off-center milling, drilling, and tapping operations are possible for increased machining capabilities. It comes standard with a 12-station BMT65 turret and synchronized C axis for versatile 4-axis capability. The opposed spindles support fully synchronized turning, and allow on-the-fly part pass-off to reduce cycle times. The DS-30Y has a medium footprint, yet provides a generous work envelope. This machine offers the best performance for the money – the best value – in it’s class.
