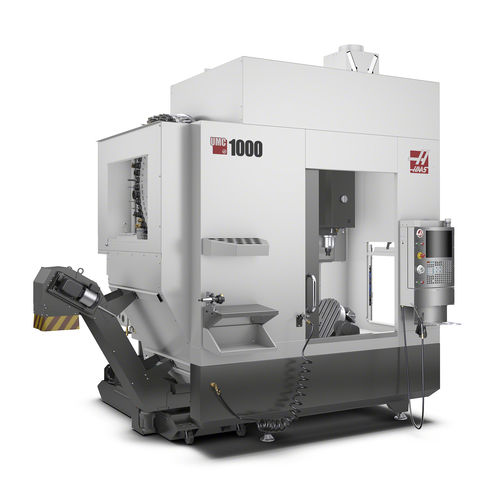

5-axis CNC machining center UMC-1000

verticalBT 40HSK A-63

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The larger travels and bigger platter of the Haas UMC-1000 Series Universal Machining Centers make them perfect solutions for 3+2 machining and simultaneous 5-axis machining of large parts. Includes Wireless Intuitive Probing System Overview The UMC-1000 offers larger travels and a bigger platter than the UMC-750, and incorporates a number of design improvements. Universal Machining Center Design Improvements: Cycloidal Rotary Drives Lighter Operator Door Front-Mounted Control Pendant Easy-Access Operator Convenience Features Larger Side-Window Stiffer Base Casting Cycloidal Rotary Drives The cycloidal rotary drive system – designed for machine tools and robotics – provides a great combination of speed, accuracy, and durability on both the B and C axes. The rugged design provides long service life, with little or no maintenance, and is especially durable in a crash. The cycloidal rotary drive can be back driven to absorb energy from an impact. The shock-load capacity is 5 times the rated torque of the gearbox, and the entire gearbox is a simple drop-in replacement, should damage occur. Operator Door Improvements The UMC-1000 door mounts inside the enclosure, which raises the bottom of the enclosure opening, and provides better chip control. Control Pendant Mount The internal mounting design of the UMC-1000 door allows the control pendant to be mounted to the front of the machine, in an operator-friendly position.
