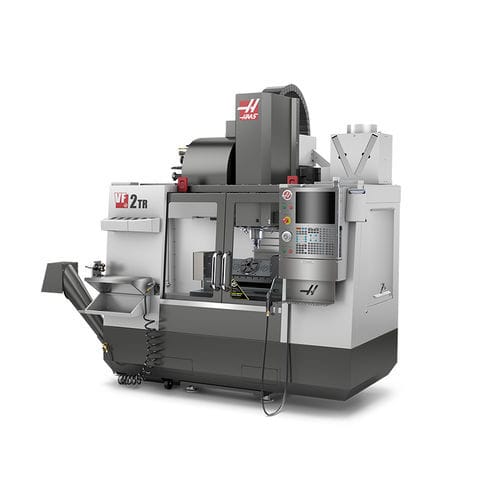

5-axis CNC machining center VF-2TRverticalBT 40HSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, HSK A-63
- Number of tool stations
- 30 tools
- Other characteristics
- high-speed, direct-drive, with automatic tool changer
- X travel
762 mm
(30 in)- Y travel
406 mm
(15.98 in)- Z travel
508 mm
(20 in)- Rotational speed
8,100 rpm
(50,894 rad.min-1)- Power
22.4 kW
(30.46 hp)- Work feed X-axis
25,400 mm/min
(17 in/s)- Work feed Y-axis
25,400 mm/min
(17 in/s)- Work feed Z-axis
25,400 mm/min
(17 in/s)- Table load capacity
1,361 kg
(3,000 lb)- Tool-changing time
2.8 s
- Weight
3,765 kg
(8,300.4 lb)
Description
The VF-2TR is a versatile 5-axis machining center based on the popular VF-2 VMC platform. It provides full simultaneous 5-axis motion, or can position a workpiece to almost any angle for machining. For added flexibility, the trunnion is mounted directly to the machine’s standard T-slot table, and can easily be removed when jobs require only 3-axis machining.
Includes high-speed machining software
Includes side-mount tool changer
