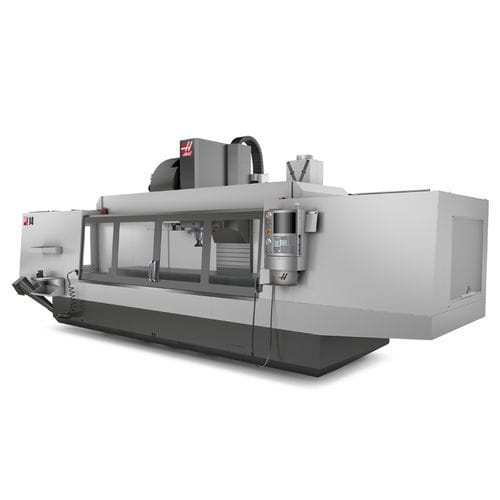

3-axis CNC machining center VF-14/50verticalBT 5030 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 50
- Number of tool stations
- 30 tools
- X travel
3,810 mm
(150 in)- Y travel
1,016 mm
(40 in)- Z travel
762 mm
(30 in)- Rotational speed
7,500 rpm
(47,124 rad.min-1)- Power
22.4 kW
(30.46 hp)- Work feed X-axis
9,100 mm/min
(6 in/s)- Work feed Y-axis
15,200 mm/min
(10 in/s)- Work feed Z-axis
15,200 mm/min
(10 in/s)- Table load capacity
1,814 kg
(3,999 lb)- Tool weight (max)
13.6 kg
(30 lb)- Tool-changing time
4.2 s
- Weight
16,874 kg
(37,200.8 lb)
Description
Every VF Series vertical machining center provides outstanding features at an excellent price, and offers a wide range of available options to customize your machine to your exact needs.
50-taper spindle with 2-speed gearbox
Customizable to your needs
Ideal for tougher materials and larger-diameter cutting tools
