Motor-driven rotary table TR160-2tiltingfor machining5-axis
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- tilting
- Applications
- for machining
- Other characteristics
- 5-axis, 4-axis
- Diameter
160 mm
(6 in)
Description

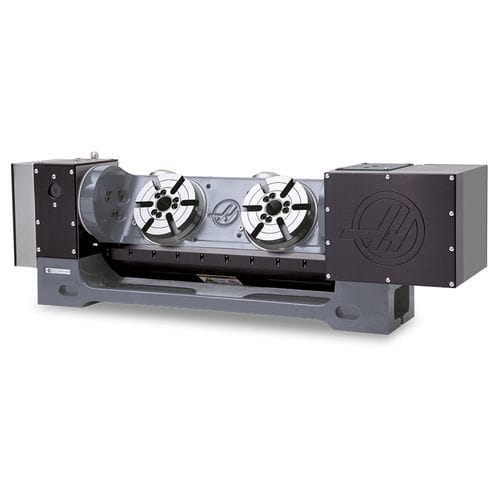

The TR160-2 is a dual-axis trunnion rotary table that offers maximum rigidity and accurate performance for 3+2 and full 5-axis machining of small to medium parts. The dual-spindle design allows two workpieces to be loaded and machined in a single setup. Scale feedback on the A (tilting) axis increases positioning accuracy and repeatability. The unit fits into VF-2 and larger VF Series machines (extended Z-axis clearance option highly recommended).
Note: Requires a Haas mill with 4th- and 5-axis drive and NGC software version 100.19.000.1100 or later for full 4th- and 5th-axis operation.
Dual spindles for increased productivity
Max weight per platter: 80 lb (36.3 kg)
Easy plug-and-play connection to Haas machines
Industry-leading performance and capabilities
