3-axis CNC machining center VS-1
verticalBT 5050 tools

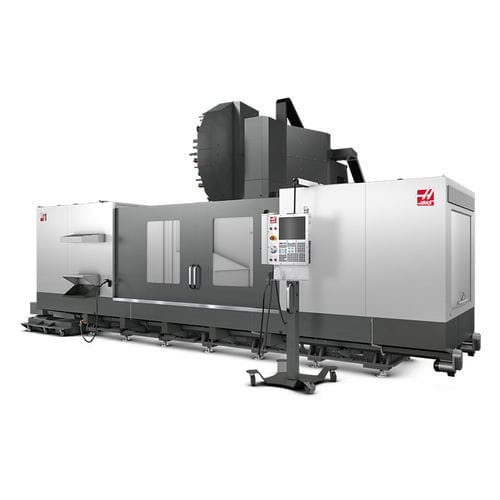

3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 2
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 3
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 4
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 5
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 6
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 7
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 8
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 9
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 10
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 11
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 12
3-axis CNC machining center - VS-1 - Haas Automation - vertical / BT 50 / 50 tools - image - 13
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 50
Number of tool stations
50 tools
Associated functions
cutting
Applications
heavy-duty
Other characteristics
with tool changer
X travel

2,540 mm
(100 in)

Y travel

1,270 mm
(50 in)

Z travel

1,270 mm
(50 in)

Rotational speed

7,500 rpm
(47,124 rad.min-1)

Power

22.4 kW
(30.46 hp)

Work feed X-axis

9,100 mm/min
(6 in/s)

Work feed Y-axis

15,200 mm/min
(10 in/s)

Work feed Z-axis

15,200 mm/min
(10 in/s)

Table load capacity

4,536 kg
(10,000 lb)

Tool weight (max)

13.6 kg
(30 lb)

Tool-changing time

6 s

Description

The Haas VS-1 is a large-frame, bed-style machining center that provides large travels and heavy-duty cutting capacity in a vertical spindle format. The machine features a 50-taper, geared-head spindle and a 50+1 side-mount tool changer. The fully supported X-axis travels easily handle parts weighing up to 10,000 lb (4536 kg). The table surface consists of two blank tooling plates that are easily machined for custom fixturing. Fixed enclosure; does not move with the table 4 chip augers, with available in-tank conveyor Control pendant on moveable stand for easy access Fully supported X-axis travel 50 mm ballscrews on all axes 102" x 49" (2591 x 1245 mm) table, with 2 blank bolt-on tooling plates for custom fixturing
