Lateral displacement beam splitter BSK-19cubic
Add to favorites
Compare this product
Characteristics
- Options
- cubic, lateral displacement
Description
The BSK-19 Series kinematic laser beam splitters provide a 90º angular beam displacement of reflected beam with minimal lateral beam displacement of transmitted beams (lateral displacement is determined by optic thickness). Several laser beam splitting options are available, optics not included.
Independent angular orthogonal mirror correction with eighty(80) pitch adjustment screws provides precise, repeatable alignment. Optic removal & replacement can be accomplished without affecting alignment. Several mirror diameters and thicknesses can be accommodated.

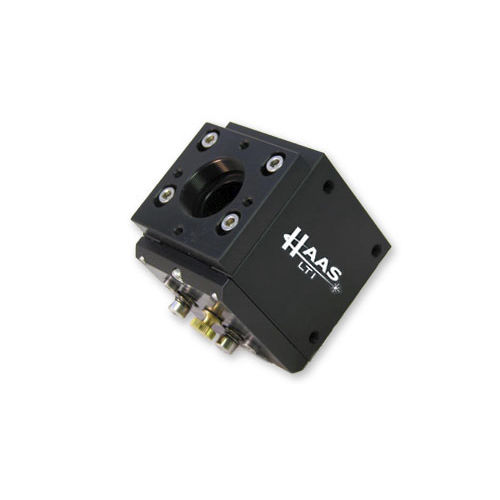

Haas part number BSK-19-25064-S shown above. Download technical drawings for each stock part number on the right. Download free Adobe PDF reader and SolidWorks Viewer on the left.
