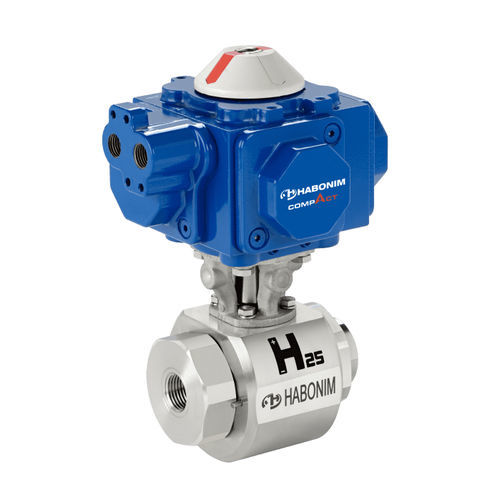

Floating ball valve H25pneumatically-operatedthreaded3-piece
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- pneumatically-operated
- Body
- threaded, 3-piece, double, ABS
- Applications
- instrumentation, actuator, plate
- Other characteristics
- ISO, standard, high-pressure, fire-safe, for hydrogen
- DN
Max.: 0.5 in
Min.: 0.25 in
- Pressure
8,000 psi
Description
Hydrogen Service High-pressure Floating Ball 3 Piece Threaded-Body instrumentation valve. Rated to 550 bar / 8,000psi.
Actuator ready with ISO plate.
Operation
Maximum Working Pressure: 550bar (8,000psi)
Working temperature: -40°C up to +85°C (-40°F up to +185°F).
Design
Threaded body
Automation-ready with standard ISO 5211 connecting plate
Total HermetiX Integrity package with:
ISO 15848-1 and API 641 emission standard certificated design
ISO 10497 and API607 fire-safe standard certificated design
Double body sealing
Testing & Certifications
TPED Certified, up to 550bar (8,000psi) MWP
100% shell & inline leak tested
Marine classification (on demand): DNV GL, LR, BV, ABS,
KR, RINA, others
