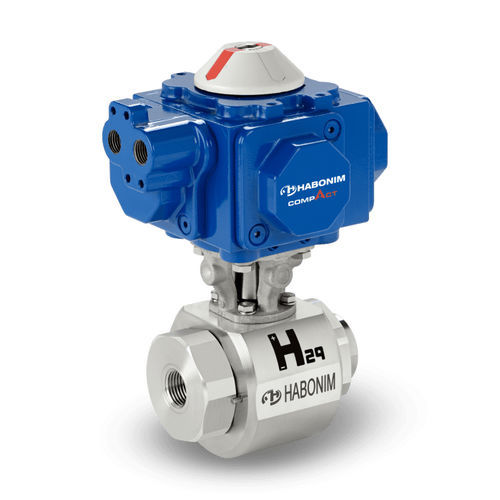

Ball valve H29pneumatically-operatedthreadedweld
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- pneumatically-operated
- Body
- threaded, weld, 3-piece, double, stainless steel, ABS
- Other characteristics
- ISO, standard, high-pressure, fire-safe, for hydrogen
- DN
Min.: 0.25 in
Max.: 0.5 in
- Pressure
10,000 psi, 15,000 psi
Description
• 3 pieces • High Pressure Cone & Thread / Threaded / Weld end connections • Double body sealing • High cycle fugitive emission fire-safe HermetiX stem seal • Actuator ready with ISO plate
Design
Threaded body
Automation-ready with standard ISO 5211 connecting plate
Total HermetiX Integrity package with:
ISO 15848-1 and API 641 emission standard certificated design
ISO 10497 and API607 fire-safe standard certificated design
Double body sealing
Testing & Certifications
ISO 19880-3:2018 Gaseous hydrogen – fueling stations valve,
Tested up to 700bar use (internal test with He)
TPED, Certified (up to 700bar MWP)
100% shell & inline leak tested
Marine classification (on demand): DNV GL, LR, BV, ABS, KR,
RINA, others
Materials
Stainless steel body & ends.
All materials compatible for Hydrogen use.
Catalogs
VALVES FOR HYDROGEN PROCESSES
32 Pages
