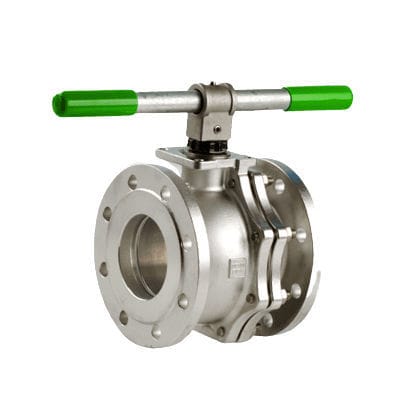

Floating ball valve 77

leverflangestainless steel

The 77 series are Habonim’s Flanged Full Port Ball Valves with a pressure rating of PN16. Ideal for conditions which require maximum flow capacity with minimum pressure drop. Habonim’s full bore valves offer tight shutoff, long service life and high durability with exceptional performance in many service applications under the most severe working conditions. Total HermetiX Integrity Package: Zero fugitive-emission no maintenance stem sealing. Double body sealing. Fire safe. 100% tested. 100% materials & processing back-tracking. Quality system approved for API 6D, PED/TPED, ATEX, SIL. End Connections variety: Wide range of end connections available for assembly on a generic center section in 3 pieces series, standard or full port. Flanged connections comply with ANSI B16.5 with standard or full port and EN 1092 with full port. Materials: Stainless Steel, Carbon Steel, special alloys as cast, forge or bar stock. Variety of polymers and elastomers for wide range of applications.
