- Production Machines
- Forming Machine
- Hybrid press brake
- Haco Atlantic Inc.

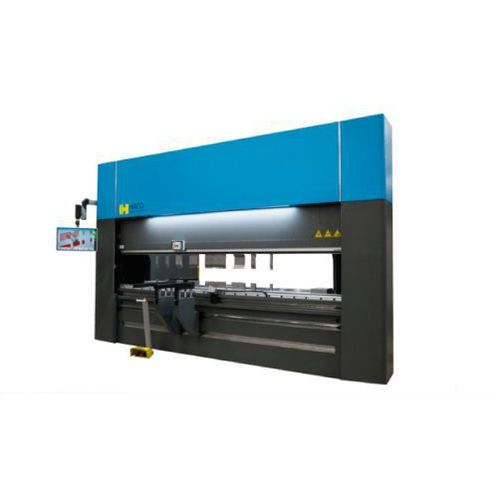

Hybrid press brake EuroMaster-S seriesCNCautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Control
- CNC
- Other characteristics
- automatic
- Press force
Min.: 750 kN
Max.: 3,200 kN
- Folding length
Min.: 2,100 mm
(82.7 in)Max.: 6,000 mm
(236.2 in)
Description
STANDARD MULTIFUNCTIONAL ALLROUND MACHINE
General level pressbrake with market oriented execution.
Extensive choice of options, both basic and sophisticated.
Innovative 2D Multi Touch graphical control. Excellent price/performance ratio. Integration of advanced safety equipment.
STANDARD EQUIPMENT:
- FastBEND-2D MT Premium control
Smart Draft + MultiTasking + Step Previewer + Combined Icons + Auto Tooling
21.5” Multi Touch screen
- High Speed X-R Backgauge for accurate sheet positioning
Stroke X = 800mm, speed = 1000mm/s
Stroke R = 130mm, speed = 250mm/s
- European Standard (ES) top clamping with Quick Manual Clamping Arrangement
- Intermediate clamping with height 100mm (up to 1500kN) or 150mm (from 2000kN)
- Manual Anti Deflection Table (Crowning) for ES dies, including nute for clamping single-V dies
- 2 Sheet Supports 750 mm with guiding, manually adjustable in height
- LED illumination of the bending area
VIDEO
Catalogs
No catalogs are available for this product.
See all of Haco Atlantic Inc.‘s catalogs
