Hydraulic shear HSLX

sheet metalguillotineCNC

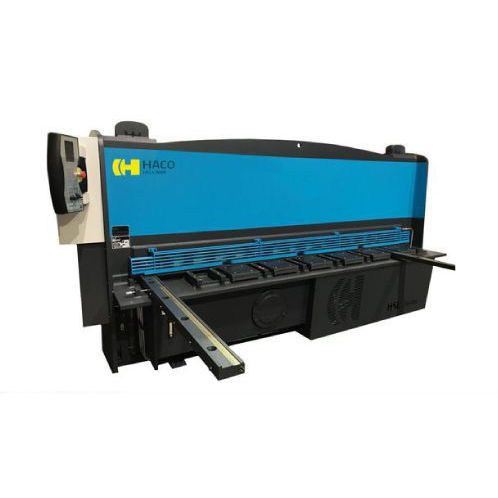

The HSLX shears are just like our TS shears guillotine type shears. This means that the cutting action is a scissors cutting action. The hydraulic cylinders on the HSLX shears are positioned directly above the ram and push the ram in a downwards direction. Guillotine shears have several advantages above swingbeam type shears. They are made to cut several material types and thicknesses and have no twist in the frame like swingbeam types. New operator control On the HSLX models, the beam rake angle and the blade gap setting are controlled by the new SC90 operator control. We adjust the rake angle on the HSLX guillotines by pumping more oil into, or releasing oil out of the right cylinder. To set the blade gap, we have 2 hydraulic cylinders which push the ram of the blade gap forward or backwards. The ram is guided between 4 spring loaded bearings. With the new SC90 control, the rake angle and blade gap settings are set automatically by entering the material type and thickness of the sheet to be cut. The servo-driven backgauge on ball-screw in combination with the SC90 control, allows the operator to program different target positions for several cuts over one sheet and cut the sheets without any need to touch the operator control. Hydraulic controlled hold-downs The sheet hold-downs on the HSLX guillotine models are hydraulic controlled. The hold-downs use a separate hydraulic circuit with separate pump. A pressure activated switch is used for the right pressure setting. The hold-downs on both sides of the shear are installed closer together to cut small plates.
