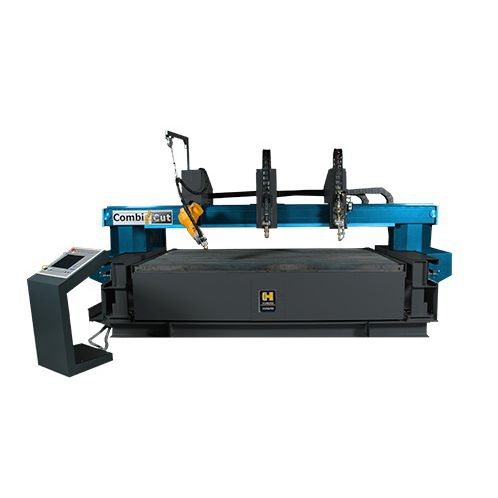

Robotic cutting machine COMBICUT

oxy-fuelplasmafor metal

The CombiCut comes with a standard Plasma and/or Oxy-fuel gantry cutting table. On the gantry, an axis can be equipped with a robot and/or a drilling unit. Any combination Plasma, oxy-fuel, drilling unit and Robot cutting is possible. CombiCut workpieces can be used in several industries such as steel construction, offshore, shipbuilding industry, machine -and crane construction, road- and water construction, special 3D-pieces. Software The graphical software is used to prepare the production and to generate the final program. The user-friendly software makes sure that the manipulation is easy and quick. Starting from 3D CAD data, a virtual representation of the robot environment can be created. Trajectories can be created (semi) automatically or manually on the 3D drawing. After creating the trajectory, a program is made and will be sent to the robot. Importing a 3D drawing and generating the Robot program happens in a minimum of time. During the cutting process, the THC unit measures the Arc Voltage and adjusts the Z-axis motor to maintain a constant distance from the sheet for optimum cutting results.Traditional automatic torch height controls require operators to periodically adjust arc voltage to ensure proper cut height. Using HACO'S Techniques, the Plasma controller samples arc voltage andautomatically adjust arc voltage for proper torch height over the life of the consumables without requiring operator input.
