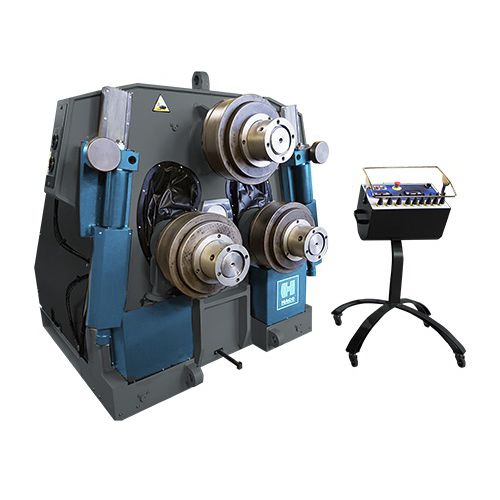

3-drive roller plate bending machine HPR

hydraulic

The HACO HPR series are profile rolls also called angle rolls. We used the same technology as our 3 and 4 roll plate bending rolls which results in a stronger and higher quality machine than most other manufacturers but still at a very competitive price. The HPR series rolls can bend almost every profile and section in steel, stainless and aluminium and are virtually maintenance-free. Standard features: - Heavy steel manufactured frame, machined on CNC machining centres for the best accuracy - 3 direct driven rolls, with hydraulic planetary motor to eliminate gear boxes, connecting arms synchro devices and clutches - 2 forming rolls for reduction of flat ends - Double roll spherical bearings SFK or equal = maintenance-free and maximum rigidity - Hydraulic motors attached directly to each planetary drive, eliminating the loss of torque - Modular tooling which can be configured to roll most standard sections. Special tooling can be ordered for rolling pipe, tubing or channels the hard way. - Control panel on wheels
