Tangent delta test system CTTS series

laboratoryfor cableshigh-voltage

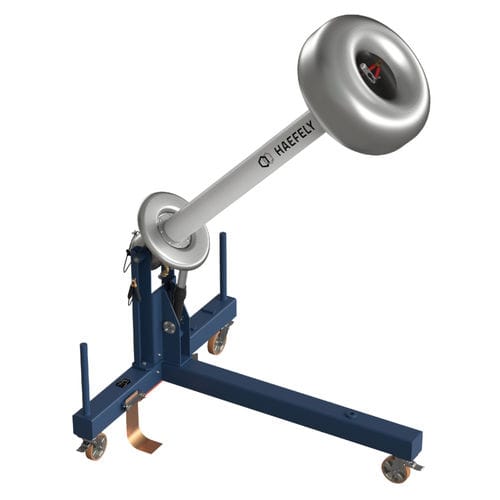

CTTS range is used for terminating cables during routine or impulse tests. Variety of cable diameters can be accommodated. CTTS include a pair of terminations with inner and outer tubes with a base frame on wheels & a water processing unit (WPU). AC withstand voltage tests, PD and tangent delta tests with high voltage applied, can be conducted. Water processing unit maintains the necessary conductivity through the test duration. Impulse voltage tests are possible too. • Integrated AC, LI PD, Tangent Delta tests with one system • Short peeling lengths lead to lower ownership costs • Small Foot print • Remotely opearable Compact water Deionization system • PD Free • Capacitance and Tangent Delta point built in as an option • Manual or Motorized raising of tubes
