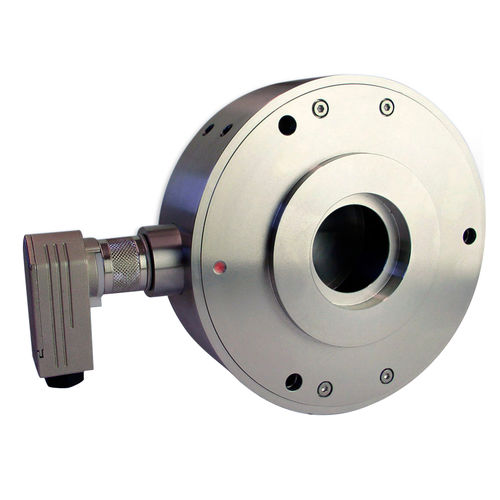

Tension/compression force sensor BZE4 series

strain gaugecompactstainless steel

Radial force sensors BZE4 are made of a compact flange design and is suitable for a variety of applications with large forces and large shaft diameters. Major fields of application are machines and equipment processing paper, textile, plastic and metal web.The force sensors are made of acompact flange design and aresuitable for a variety of applications.They basically consists of the seat ofthe bearing, the measuring elements andthe housing with cover disks. The acting forces are captured by strain gauges applied to the measuring elements. The full bridge strain gauge are designed for maximum signal usage and temperature compensation. HAEHNE offers for all its sensors a corresponding range of amplifiers to condition the measuring signal and deliver the bridge voltage supply.
