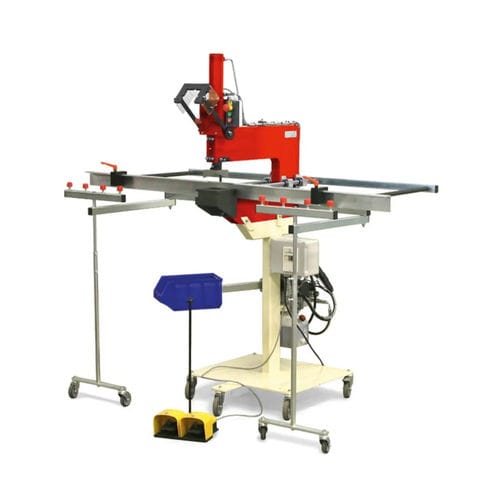

Cutting punching machine Multi-Presse 500

hydraulicsheet metalenclosure

• Working without marking and center punching • Useful working depth 500 mm/19.69“ • ”Repositioning is possible“ • Designed for machining small housings as well as large mounting plates Powerful bow punch with integrated hydraulic unit for quick and exact punching without pilot holes. Exchangeable die holders allow the use of punching tools up to 92x92 mm/3.62x3.62”. Designed for punching junction boxes, wall-mount enclosures, doors, covers/lids, mounting/cable plates, flat and flanged sheets up to 40 mm/1.57“. The “narrow“ die supports are perfect for punching junction boxes and enclosures. Center point indicator via laser diode. Pivot door support. Transparent finger guard with wiper function. Easy and quick tool exchange. Quick punching of large cut-outs thanks to narrow but long rectangular punches. Equipped with mobile pedestal offering flexible use in the workshop. Technical Data • Application: Punching of cut-outs • Material: Sheet steel, stainless steel, polyester • Suitable for: Round punches up to ø 92 mm/3.62" Square punches 92 mm/3.62" Rectangular punches up to a max. length of 92 mm/3.62" • Material thickness: • Sheet steel up to 2 mm/14 ga • Stainless steel up to 1.5 mm/17 ga • Polyester up to 4 mm/9 ga • Noise level: 55 dB • Piston stroke: 100 mm • Processing depth: 500 mm • Power Supply: 230V • Hydraulic output: 0,37 - 0,55 kW • Footprint: 2 000 x 800 x 1 900 mm/78,74 x 31,50 x 74,80" • Workpiece dimensions: max. 1,000 x 2,000 mm/39.37“ x 78.74“ • Length stop: Adjustable on both sides of the cylinder from 48 up to 920 mm/1.89“ - 36.22“ • Depth stop: Adjustable from 28 up to 500 mm/1.10“ – 19.69“ • Punch holder Ø: 30 mm
