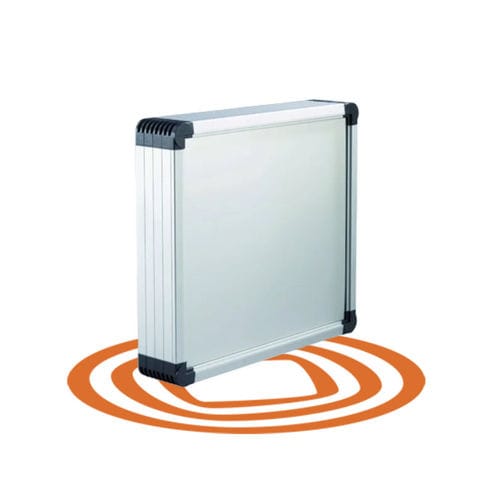

Wall-mount enclosure HLG seriesmodularextruded aluminumfor general purposes
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- modular
- Material
- extruded aluminum
- Application
- for general purposes
- Protection level
- IP54
- Other characteristics
- control
- Width
600 mm
(23.6 in)- Height
700 mm
(27.6 in)- Depth
60 mm, 90 mm, 130 mm, 210 mm
(2.36 in, 3.54 in, 5.12 in, 8.27 in)
Description
• Variable width and height dimensions
Control enclosure made of extruded aluminum profiles
Width and height are variable up to max. 600 x 700 mm.
It is possible to mount a door with the same profile
Mounting of a pendant arm or lift system is possible at the rear panel, 90 mm and deeper enclosures can also be connected from the top or bottom
Technical data
• Protection class:according to IP54
• Material:Profiles: extruded aluminum profiles, front and rear panel: 3 mm aluminum
• Variant:Extruded aluminum profiles
• Surface:Profiles, front and rear panel: light anodized, corner profiles: RAL 7016
Notice
• Use for the configuration of your order number the file under Downloads
