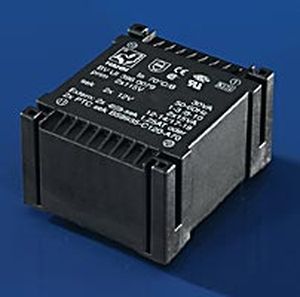

Electrical power supply transformer UI 39 seriesencapsulatedfor electronicshigh-voltage
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Configuration
- encapsulated
- Applications
- for electronics
- Electrical characteristics
- high-voltage
- Mounting
- for printed circuit boards
- Other characteristics
- flat type, safety, vacuum impregnation
- Electric power
Max.: 0.03 kVA
(0.0408 hp)Min.: 0.0012 kVA
(0.0016 hp)- Primary voltage
110 V, 115 V, 120 V
- Secondary voltage
Max.: 21 V
Min.: 6 V
- Primary current
Max.: 2,500 mA
Min.: 29 mA
Description
Capacity up to 30.0 VA
Temperature class ta 70 C/B, but not short-circuit-proof
Test certifications to ENEC 05-, KEMA KEUR-, CSA- and UL-regulations
Vacuum encapsulated, bobbin type with dual chamber windings
Excellent temperature fluctuation resistance properties
High electrical safety and long Service-life features
High voltage resistance
Self-extinguishing cast housing and sealing material
Item quality certification
