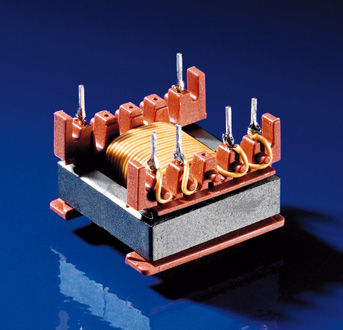

Electrical power supply transformer EE 20/6 encapsulatedfor electronicssingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Configuration
- encapsulated
- Applications
- for electronics
- Electrical characteristics
- single-phase
- Mounting
- for printed circuit boards
- Other characteristics
- flyback, open type
- Primary voltage
Max.: 265 V
Min.: 85 V
- Secondary voltage
3 V, 9 V
- Primary current
Max.: 2,670 mA
Min.: 270 mA
Description
Technical Specifications
Construction to EN 61 558, EN 60 950
Creeping distance 4 mm min.
UL listed materials
Insulation material class E
Two outputs for connection in parallel or in series
100 % piece inspection
Inductance
Turns ratio
Winding direction
Voltage resistance (50Hz/2s)
