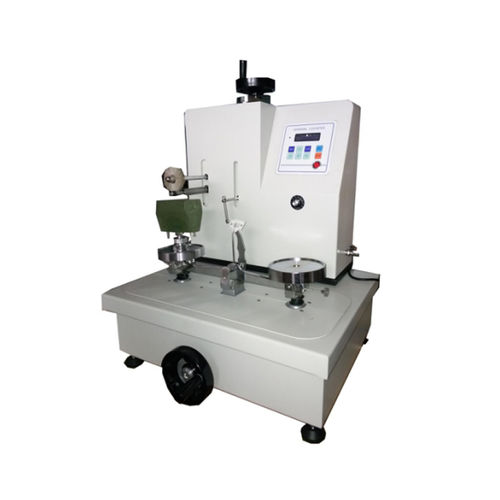

Scrub resistance abrasion tester
Add to favorites
Compare this product
Characteristics
- Options
- scrub resistance
Description
INTRODUCTION
This machine is used to test the abrasion function of shoe sole & outsoles. The theory is the rotated wheels will abrasive the sample in vertical under a certain force & speed & time, then measure the crack length. This machine has outage memory function.
STANDARD
GB/T 3903.2
STANDARD FEATURES
Size of wheel Ф(20±0.1mm)& (4±0.1) T12 steel wheel
Rotate speed of wheel 191±5r/min (100~300±5r/min adjustable)
Test time 20min continuous
Balance measuring range 5000g, precision 5g
Counter LCD, 0~999,999
Weight Approx. 88kg
Power 1 phase, AV 220V, 50/60HZ
Size (W*D*H) 60*50*70cm
Accessories English operate manual, operate video and factory inspect report
