Flexion tester shoes tester 5

for shoe

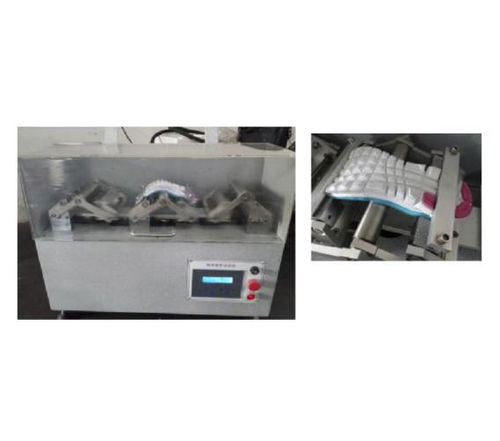

Production Introduction This product is to test the use life after the sole flexed. The sole may break or craze after long-time roller bending. When using this machine, impale several holes at the place where has max bending rate, then fix the two ends of the sole, with end fixed and the other movable. During test, make the circular shaft rise repeatedly, after banded enough times, check its stretch stage through magnifying glass test standard: EN344 ,SATRA TM161,ISO 17707,GB/T20991 Standard Feature: Bending Angle:90° Bend speed:140times per minute Test class number:3group Counter: LED,0-999,999 automatic shutdown motor: DC,120W Machine size:(LxWxH)1000x450x540mm Weight: 168kg Power: 1∮, AC220V, 3A
