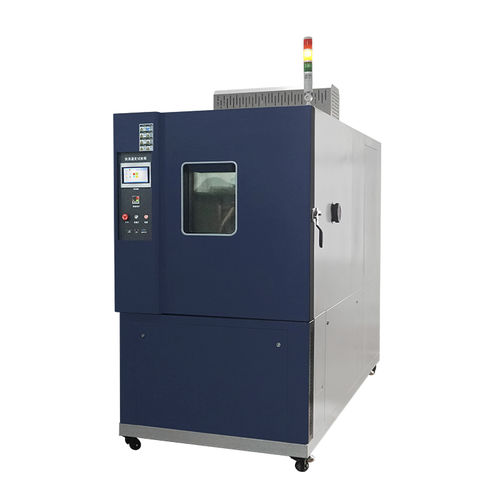

Climate chamber HD-E708

temperaturehumidityfor rapid temperature cycling

Rapid-rate Thermal Cycle Chamber Equipment Minimum1 SET Delivery15 days after order. ModelHD-E708 CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF TEST STANDARD IEC60068-2-14 Change of temperature with specified rate of change INTRODUCTION This chamber is ideally suited for specimen test requiring quick changes of temperature. It can evaluate the failure of thermal mechanical properties of product. Normally the temperature rate is less than 20C/min, which can achieve the real application environment of testing sample by the fast ramp rate. STANDARD FEATURES FOR CHAMBER Item Specification Internal dimension(W*D*H) 400*500*500mm External dimension(W*D*H) 600*1080*1380mm Working capacity 100 liter Internal chamber material SUS#304 stainless steel, mirror finished External chamber material Stainless steel with paint spray Temperature range -70℃~+180℃ Temperature fluctuation ±1C Humidity range 10%~98%RH Humidity fluctuation ±2.5%RH Humidity uniformity 3%RH
