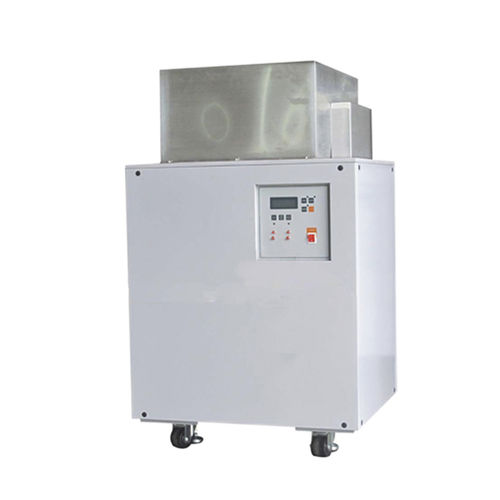

Bending tester HD-P824

for shoewaterproof

Shoe Bending Waterproofness Tester Minimum1 SET Delivery15 days after order. CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF Shoe Bending Waterproofness Tester PRODUCT DESCRIPTION This machine can be used to test the dynamic waterproof performance of various types of finished shoes. Put the shoes on the test machine, then pour a certain depth of water into the tank and make the footwear contact with water. The tester will with a certain angle and frequency promote the rear of the footwear bending simulation of people walking in the water to test, and measured water permeability at a predetermined time or the number of times when the footwear through the water. TEST STANDARD ISO 20344 5.15.2 STANDARD PARAMETER ItemSpecification Test station2 Flexing rate60±6 rpm Flexing angle22±5° Flexing directionUpward CounterLED display, 0～999, 999 times Water capacity7.6L Dimension (approx.)65*83*129cm Weight205kg  Power1∮, AC220V, 3A
