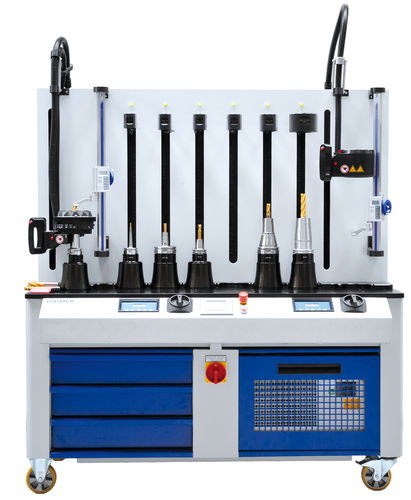

Cold shrink fit machine Power Clamp Premium Plus

for tools

The Power Clamp Premium Plus is a high-end shrink fit device for absolute process security with two separated electronic units and two coils. The cooling bodies are fixes to linear guides. The cooling process is temperature controlled and ends automatically. With intelligent coil VS32-M and 20 kW coil Integrated contact cooling with six cooling bodies Attachement of the cooling bodies at linear guides Centered move-down of the cooling bodies onto the tool holder No damage at the edges of the cutting tool Automatic move-up of the cooling bodies after the termination of the cooling process (temperature-time controlled) Two length presetting units with height stop Tools: solid carbide and HSS from Ø 3 – 50 mm Power: ca. 33 kW Included in delivery: Shrink fit machine Power Clamp Premium Plus; Cooling Manager; 2 precision base holders; 2 precision chuck supports Contact Cooling Cooling body for rapid cooling Cooling in record time: approx. 30 s Tool holders remain dry;n no build-up of rust Gentle handling of chuck by even cooling; runout accuracy is maintained Hot points are always covered, no risk of injury TME Intelligent Cooling System with Temperature Control Sensor in aluminium body measures temperature. If temperature is too high: red light If temperature is at right level: green light Minimizing danger of injury due to hot chucks Patented temperature control
