Hydraulic clamping fixture hs-dock
mandrel

Hydraulic clamping fixture - hs-dock - HAINBUCH GMBH SPANNENDE TECHNIK - mandrel
Hydraulic clamping fixture - hs-dock - HAINBUCH GMBH SPANNENDE TECHNIK - mandrel
Hydraulic clamping fixture - hs-dock - HAINBUCH GMBH SPANNENDE TECHNIK - mandrel - image - 2
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Applications
mandrel
Clamping force

35 kN, 45 kN

Description

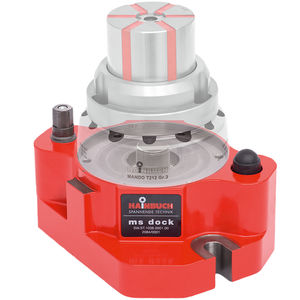

Whether lathe or machining center Complete machining made easy: You cannot only use our MANDO and MAXXOS segmented mandrels on the lathe, you can also use them in stationary mode. Simply screw the mandrel onto the ms dock [manually actuated] or hs dock [hydraulically actuated] and you can clamp your workpiece from the inside, stationary mode. Precise, without vibration and with minimum set-up effort. The extremely wear-resistant segmented clamping bushing of case-hardened chromium-nickel-steel with the rubber between the segments, especially developed by HAINBUCH, makes it possible. Hydraulic actuating unit hs dock hs dock is an absolute powerhouse that enables hydraulic implementation of MANDO and MAXXOS segmented mandrels on machining centers. Media supply can be freely selected. It is actuated either from the side or via a base plate from below. Perfect when automation is involved.
