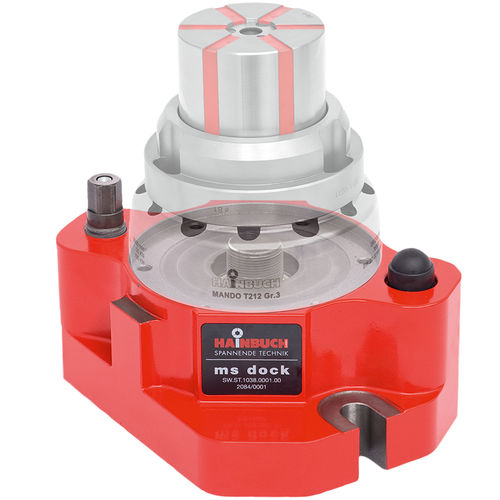

Manual clamping fixture - ms dock - HAINBUCH GMBH SPANNENDE TECHNIK - hydraulic / mandrel
Manual clamping fixture - ms dock - HAINBUCH GMBH SPANNENDE TECHNIK - hydraulic / mandrel
Manual clamping fixture - ms dock - HAINBUCH GMBH SPANNENDE TECHNIK - hydraulic / mandrel - image - 2
Manual clamping fixture - ms dock - HAINBUCH GMBH SPANNENDE TECHNIK - hydraulic / mandrel - image - 3
Add to favorites
Compare this product


Characteristics

Type
manual, hydraulic
Applications
mandrel
Clamping force

35 kN, 40 kN

Description

Whether lathe or machining center Complete machining made easy: You cannot only use our MANDO and MAXXOS segmented mandrels on the lathe, you can also use them in stationary mode. Simply screw the mandrel onto the ms dock [manually actuated] or hs dock [hydraulically actuated] and you can clamp your workpiece from the inside, stationary mode. Precise, without vibration and with minimum set-up effort. The extremely wear-resistant segmented clamping bushing of case-hardened chromium-nickel-steel with the rubber between the segments, especially developed by HAINBUCH, makes it possible. Manual actuating unit ms dock The hand-actuated ms dock in conjunction with stationary MANDO and MAXXOS segmented mandrels is ideal for machining centers, measuring machines, radial drill presses, parallel and angle plate clamping or for clamping on dividing heads. The version ms dock rotating can be used on turning and grinding machines until RPM 1/min.
