Stationary workpiece clamping chuck MANOK plus CFK
colletmillingmanual

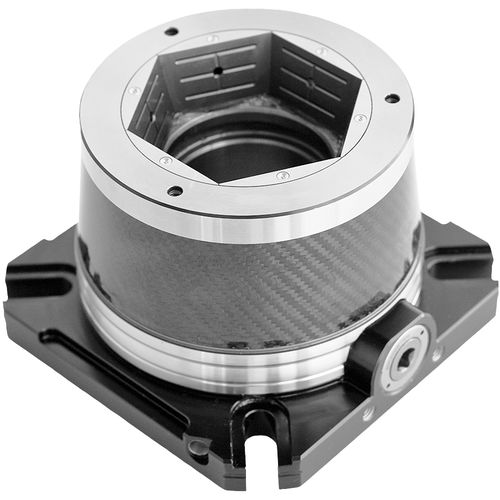

Stationary workpiece clamping chuck - MANOK plus CFK - HAINBUCH GMBH SPANNENDE TECHNIK - collet / milling / manual
Stationary workpiece clamping chuck - MANOK plus CFK - HAINBUCH GMBH SPANNENDE TECHNIK - collet / milling / manual
Add to favorites
Compare this product


Characteristics

Clamping method
collet
Application
milling
Other characteristics
stationary, manual
Clamping range

Min.: 3 mm
(0.12 in)

Max.: 65 mm
(2.56 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 60 rpm
(377 rad.min-1)

Description

Extended variant with many more clamping possibilities MANOK plus, the extended variant of our manual MANOK stationary chuck differs through use of adaptation elements. For example, many more clamping possibilities are available to you in combination with the MANDO Adapt mandrel-in-chuck or the jaw module for even larger clamping diameters. Lightweight variant And most recent: Due to the optional lightweight CFRP design, with the MANOK plus CFK you can save half of the weight. The lightweights are easy to set-up and particularly well-suited for milling machines and machining centers with small load weights. Plus they protect machine components, which ultimately helps the machine accuracy. When loading manually or with a handling system, often the only possible solution is a lightweight stationary chuck.
