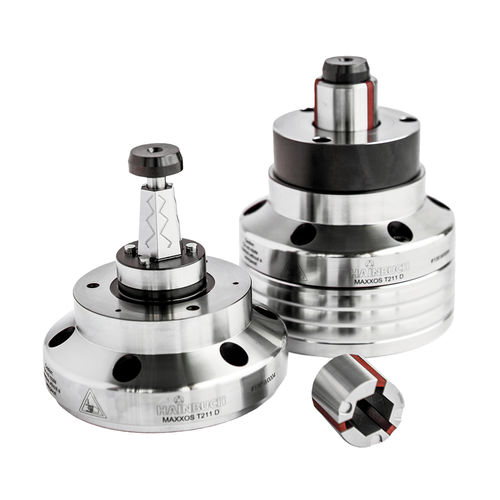

Quick-change mandrel MAXXOS

high-precision

Maximum machining capacity MAXXOS T211 is a mandrel with a hexagonal pyramid shape instead of a round taper – perfect for demanding and reliable process manufacturing. Through the hexagonal clamping pyramid, maximum transmission forces can be realized. The segmented clamping bushing with the hexagon socket sits on the clamping pyramid with an absolute positive fit, which enables maximum machining capacity with less vibration and thereby less tool wear. The lubrication, combined with its leak-tightness ensures an extremely constant production flow and therefore maximum reliability. By the way, our segmented clamping bushings offer a factory-standard run-out accuracy of ≤ 10 μm. If you need even greater precision, there are two additional levels of run-out quality to choose from. Even a run-out accuracy of ≤ 2 μm is possible upon request. Application: for machining Clamping method: expanding sleeve Number of jaws not specified Other characteristic: sprecision, standard high-precision, quick-change Machine mount: not specified Run-ot accuracy ≤ 0.01 mm / 0.007 mm possible
