Mechanical clamping element EH 23690. series

flexibleconicalhorizontal

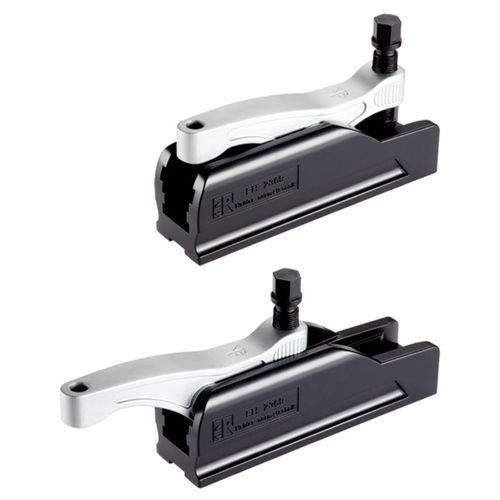

The compact clamps are all purpose clamping elements. Due to the self-locking tension lever application can either take place in horizontal or vertical position in both, machined and raw workpieces. Features: Exact and position precise clamping Easy, universal handling High clamping force at low tightening torques, abrasion-resistant due to tension lever with bearings Continuous, large clamping area Tension lever entirely retractable for hindrance-free exchange of workpieces Tension lever with locating thread for various clamping elements, e.g. ball-ended thrust screws (EH 22700. - EH 22720.), self-aligning pads (EH 22730. / EH 22740.) etc. Large adjusting range at constant clamping force Continuous increase of the clamping range by height adapters 23690.0112 / .0116 Easy and flexible mounting options Corrosion-resistant Resistant to dirt and chips Material Body Heat-treated steel, black coated Tension lever Heat-treated steel, tempered, silver coated
