Steel clamping lever EH 24420. series
adjustablewith tapped insert

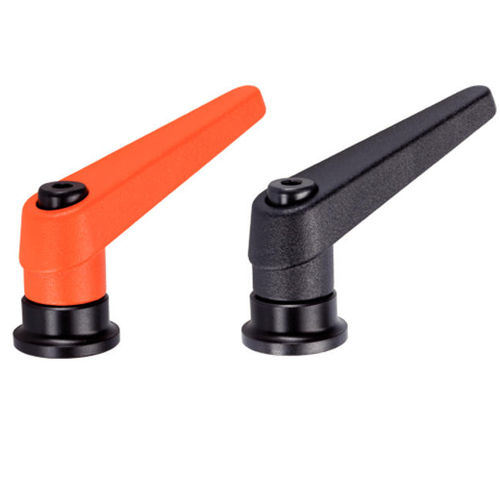

Steel clamping lever - EH 24420. series - HALDER France - adjustable / with tapped insert
Steel clamping lever - EH 24420. series - HALDER France - adjustable / with tapped insert
Steel clamping lever - EH 24420. series - HALDER France - adjustable / with tapped insert - image - 2
Steel clamping lever - EH 24420. series - HALDER France - adjustable / with tapped insert - image - 3
Steel clamping lever - EH 24420. series - HALDER France - adjustable / with tapped insert - image - 4
Add to favorites
Compare this product


Characteristics

Material
steel
Other characteristics
adjustable, with tapped insert

Description

Advantages of axial bearing: Double clamping force with same lever size, by reducing the surface friction. Protection of workpiece by a fixed locating surface. Little setting due to higher pre-clamping force of bolt, e.g. thread. Material Lever Zinc die-cast, plastic coated, orange similar to RAL 2004, matt stucture Zinc die-cast, plastic coated, black, similar to RAL 9005, matt structure Threaded part Steel, nitrided, blackened Inner parts Steel, nitrided, blackened Operation By lifting the lever the serrations are disengaged. The lever can be positioned by the serrations. On releasing the lever, the serrations are automatically re-engaged. Notes The threaded portion can be exchanged.
