Operating handwheel EH 24580. series
spokedsteel

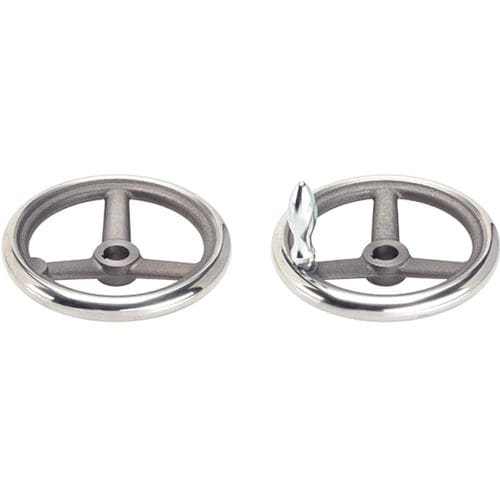

Operating handwheel - EH 24580. series - HALDER France - spoked / steel
Operating handwheel - EH 24580. series - HALDER France - spoked / steel
Operating handwheel - EH 24580. series - HALDER France - spoked / steel - image - 2
Operating handwheel - EH 24580. series - HALDER France - spoked / steel - image - 3
Operating handwheel - EH 24580. series - HALDER France - spoked / steel - image - 4
Operating handwheel - EH 24580. series - HALDER France - spoked / steel - image - 5
Operating handwheel - EH 24580. series - HALDER France - spoked / steel - image - 6
Add to favorites
Compare this product

Go to the HALDER France website for more information

Characteristics

Function
operating
Configuration
spoked
Material
steel
Outside diameter

Max.: 400 mm
(15.75 in)

Min.: 80 mm
(3.15 in)

Bore size

Max.: 34 mm
(1.34 in)

Min.: 10 mm
(0.39 in)

Description

Hub machined; rim turned and mirror-finished on all sides, non-machined surfaces cleanly blasted. Material Handwheel Grey cast iron GG Machine handle DIN 39 EH 24450. Steel, turned, zinc-coated by galvanization, passivated Rotating machine handle DIN 98 EH 24460. Steel, turned, zinc-coated by galvanization, passivated
