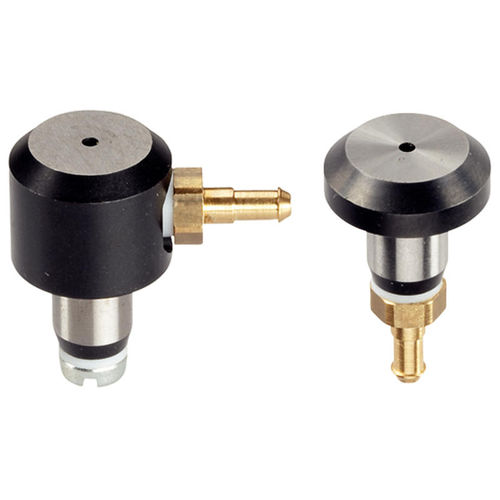

Used in jigs and fixtures as positioning control for pre-machined workpieces.
Sensitivity accuracy 0,015 - 0,075 mm depending on the workpiece surface.
Contact control by the compressed-air backwash, indicated on the monitoring unit (Art. No. 22800.0612).
Material
Seating Pins
Tool steel, hardened, ground
Seal
PVC
Screw
Steel, galvanized, quality 4.8 (ISO 1207)
Plug-in nipple
Brass
